特點及參數 Features and parameters

•運轉速度：60/min/(max)

•Operation speed:60/min(max)

•灌裝容量：5-180ml

•Filling volume:5-180ml

•灌裝精度：≤±1%

•Filling precision:≤±1%

•適合軟管長度：50-180mm

•Suitable tube length:50-180mm

•適合軟管直徑：ø13-35mm

•Suitable tube diameter ：ø13-35mm

•喂管系統：斜掛式自動整列喂管倉

•Standard configuration: obliquely hanging type automatic lining-up tube feeding storehouse

•選配：鞍形折疊封尾裝置，并可通過調節實現折疊三邊及馬鞍折

•Standard configuration: saddle folding and sealing device, which can realize three-side and four-side folding through adjustment

•選配：夾層料桶保溫裝置

•Optional:jacket and barrel heat preservation device

•選配：料桶內部攪拌裝置

•Optional:blending device inside the barrel

•選配：自動控制上料裝置（泵）

•Optional:automatically controlled material feeding device(pump)

•選配：成品管輸出傳送裝置

•Optional:finished tube conveyor

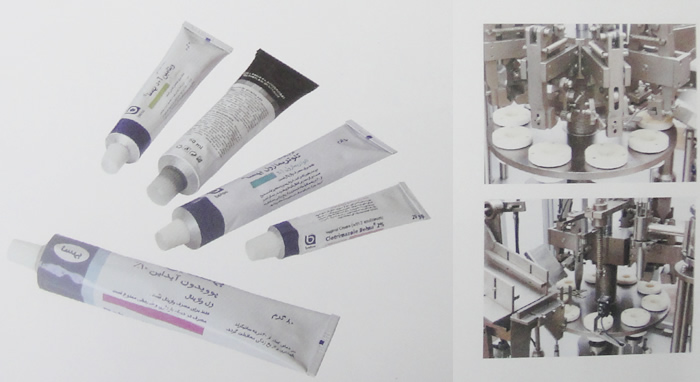

適用于：金屬管

Applicable to :metal tubes
